Reliable 20mm Push Fit Elbow Connector
Looking for a simple and secure way to connect pipes? Our 20mm push fit elbow connector offers quick installation without special tools and ensures permanently tight connections. Ideal for drinking water installations, radiator connections, and more.
Product Features and Benefits
- No Press Tool Required: Save time and money because you do not need expensive special tools. You simply plug the pipes together.
- High-Quality Plastic PA6: The outer sleeve is made of durable, high-performance plastic PA6 and offers maximum impact resistance, reliably protecting the connection.
- Automatic Sealing: The EPDM wedge seal with a large safety buffer ensures automatic and permanent sealing, so you don't have to worry about leaks.
- Brass Parts Made of CW617N: The heavy brass parts made of CW617N (CuZn40Pb2) guarantee high assembly reliability and long service life.
- Low Pressure Loss: The very good resistance coefficient (Zeta) ensures lower pressure loss, which increases the efficiency of your installation.
- Free Passage: Enjoy free passage and virtually no flow noise, which ensures smooth operation.
- Safe for Drinking Water: All materials are harmless for use in drinking water and comply with the UBA positive list, so you don't have to worry about your health.
- Inspection Window: Two inspection windows allow you to easily check the insertion depth and ensure correct installation.
Advantages of Our Push Fit Elbow Connector
- Easy and Quick Installation: No special tools required – simply plug and you're done!
- High Safety: The automatic seal and robust materials ensure a permanently tight and secure connection.
- Versatile Application: Ideal for drinking water, heating, and cooling installations, as well as oil-free compressed air systems.
- Durability: The high-quality materials and careful workmanship guarantee a long service life.
- Drinking Water Certification: All materials are approved for use in drinking water systems.
- Cost Saving: No expenses for expensive press tools and shorter installation time.
- Quality Standards: Meets the highest quality standards.
How to Use the Push Fit Elbow Connector: Step by Step
- Step 1: Cut the Pipe to Length: Cut the pipe to the desired length with pipe shears. Ensure a clean, right-angled cut.
- Step 2: Calibrate and Deburr the Pipe: Use a calibrator to calibrate and deburr the pipe end. This ensures that the pipe is round and has no sharp edges.
- Step 3: Install the Fitting: Insert the fitting with adequate pressure and in an axial direction until it stops on the pipe end.
- Step 4: Check the Insertion Depth: Check the correct insertion depth through the two integrated inspection windows. Both inspection windows must be filled by the pipe.
- Step 5: Test: Check the pipe for a tight fit. It must no longer be able to be pulled out. Be sure to carry out a pressure and leak test!
Technical Specifications
| Property | Value |
| Material | Brass CW617N (CuZn40Pb2), Plastic PA6, EPDM |
| Size | 20 x 2 to 20 x 2 mm |
| Operating Temperature | Max. 95° C |
| Continuous Load Capacity | 10 bar / 70° C / 50 Years |
| Certification | (except ball valve for heating), IMA, EN ISO 21003 |
Frequently Asked Questions (FAQ)
Is this push fit elbow connector suitable for drinking water?
Yes, our push fit elbow connector is certified and fully suitable for drinking water installations.
Do I need special tools for installation?
No, for installation, you only need pipe shears and a calibrator. A press tool is not required.
How long does the push fit elbow connector last?
With proper installation and under normal operating conditions, the continuous load capacity is 10 bar at 70° C for 50 years.
Can I loosen the push fit elbow connector again?
It is a non-detachable connection. Before assembly, make sure that the pipe has the desired length.
Which calibrator should I use?
Please only use our calibrator in gray for calibration.
Customer Reviews
⭐⭐⭐⭐⭐ Easy Installation!
I used the push fit elbow connector for my heating installation and was thrilled with how easy the installation was. Everything is tight and works perfectly.
I used the push fit elbow connector for my heating installation and was thrilled with how easy the installation was. Everything is tight and works perfectly.
Peter Müller
⭐⭐⭐⭐⭐ Top Quality at a Fair Price!
The push fit elbow connector makes a very robust impression and is of high quality. I am very satisfied with the product and the price-performance ratio.
The push fit elbow connector makes a very robust impression and is of high quality. I am very satisfied with the product and the price-performance ratio.
Maria Schmidt
⭐⭐⭐⭐⭐ Fast Delivery and Great Service!
I ordered the push fit elbow connector at Boni-Shop and was not disappointed. The delivery was very fast, and the customer service was very friendly and helpful.
I ordered the push fit elbow connector at Boni-Shop and was not disappointed. The delivery was very fast, and the customer service was very friendly and helpful.
Hans Meier
⭐⭐⭐⭐⭐ Very Reliable and Tight!
I have used several push fit elbow connectors for my drinking water installation and am very satisfied. All connections are tight, and there were no problems at all.
I have used several push fit elbow connectors for my drinking water installation and am very satisfied. All connections are tight, and there were no problems at all.
Julia Weber
⭐⭐⭐⭐⭐ Easy to Install and Top Quality!
The installation is very easy to do, even for beginners. The quality is great, I am very satisfied and can only recommend it!
The installation is very easy to do, even for beginners. The quality is great, I am very satisfied and can only recommend it!
Thomas Becker
Why You Should Buy From Boni-Shop?
- Wide range of high-quality products
- Fast delivery
- Expert advice
- Secure payment methods
Protect Your Home!
EU-Responsible Name: Peter Rimbach
EU-Responsible Street: Hinter Stöck
EU-Responsible House No: 6
EU-Responsible Post Code: 72406
EU-Responsible Town: Bisingen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: 4915753699307

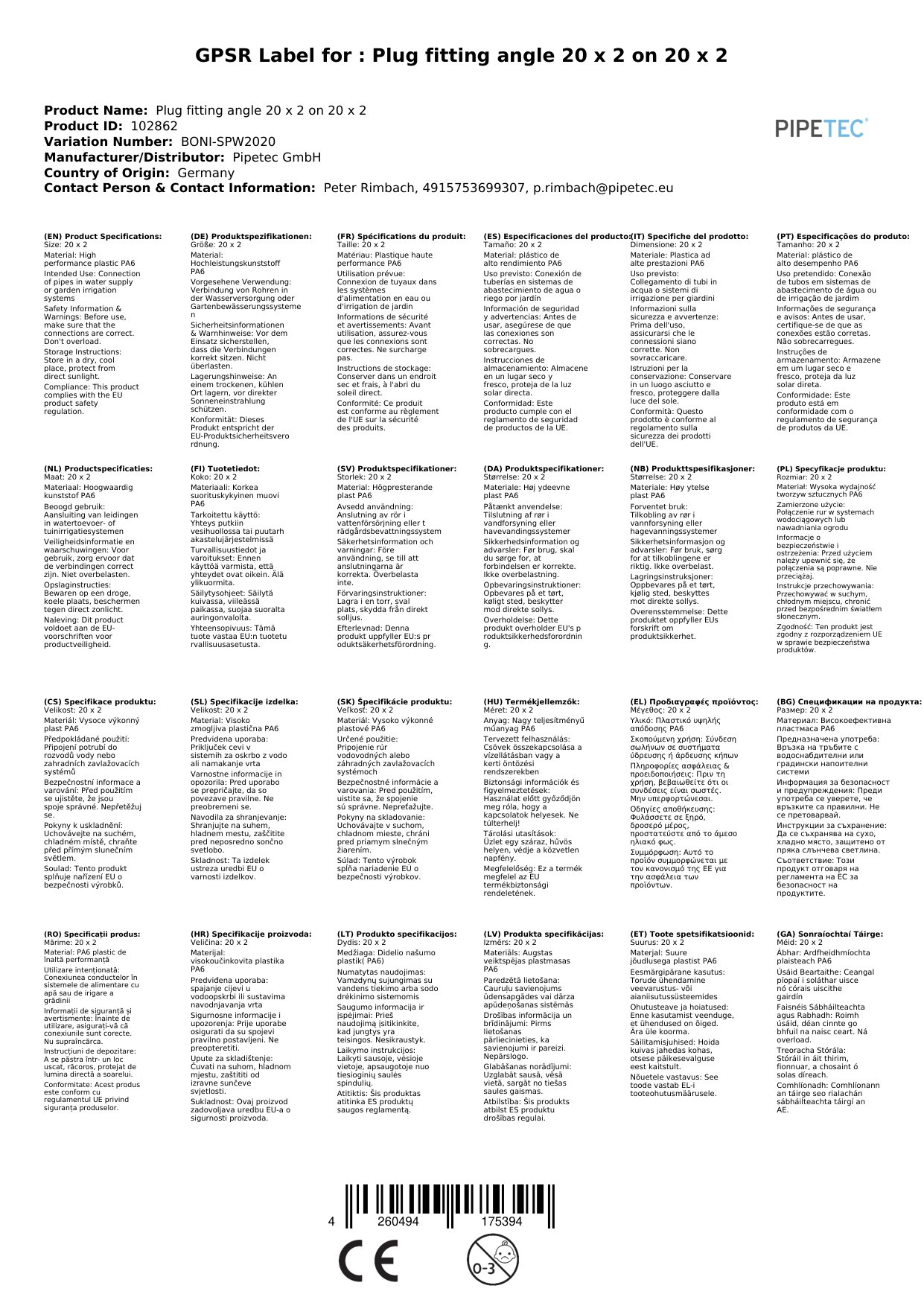

GPSR attachment:
